High performance with maximum energy efficiency, this is the goal of the new WEG electric motor. High efficiency and Low cost of Ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to maximize performance and energy savings. WEG’s W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise, extending the life of the motor.

• 1 – 600 Horsepower motors and above
• 50/60 Hz rated
• 1.25 service factor in all ratings
• Optimized ventilation system
• Solid base for reduced vibration levels
• Frames 447T
• NPT Threaded terminal box
• Cast Iron Frames
• Gasketed conduit box
• Stainless Steel nameplate

Redesigned to provide improved air flow through all motor frames keeping low operational temperatures and assuring reliability and extended lifetime. The aerodynamic design of the fan cover increases effective airflow, thus minimizing losses due to the recirculation of air between fan and fan cover. The fan was designed to provide strength and reduced noise level. Motor terminal box and eyebolts were repositioned on larger frames to allow better airflow.

Increased internal space making connections more accessible to the user resulting in an easier cable handling and connection. Terminal box can be mounted on top, left or right site of the motor using the same frame on the 447T and larger motors. Top mounting is optional on smaller frames.

Motor feet are solid providing a more resistant structure against vibration. The frame design has points that can be used as provisions for vibration sensors as a standard feature.

• 8” 304 stainless steel J-risers (shown to the left).
• 8” 8-bolt stainless steel flange for easy bolt-on adaption to pipe—PVC or steel.
• 8” stainless steel male drag end connection.
• Risers built with 304 Stainless Steel Schedule 10 pipe.

Also available:
• 6” Stainless Steel Riser.
• “Z” instead of “J” style.

We offer bulk PVC pipe by the truckload.

For Pricing and Availability
Call (315) 224-0444

• 20,000 gal. frac tank
• (2) – 3000 psi hyd. Cylinders
• 3-3/8” spindles and 10 bolt hubs
• 425/65 22.5 wheels
• 3 point hitch with 7000 lbs vert. lift and 40,000 lb gross trailer weight
• Pintle hitch.
• 2 Standard fill openings
• Suction port for easy hook up to Power Unit
• Light kit for road travel
• Rear doors for clean out access

• Open Top Tank
• PTO or Hydraulic Load Out Pump
• 8” Load Out Boom

A range of equipment is needed in agricultural operations, especially in regular fertilizer applications and diesel fuel storage. Frac tanks are helpful for temporary storage of liquids across a number of agricultural jobs. Depending on your specific operation, Cuff Farm Services will help you select the Frac tank that will deliver the best result in the most cost-effective way.

Drag hose is an integral part of your drag line system. Mandals' Dragman series of high quality flexible layflat hoses are designed for the rigors of the job.

Mandals Dragman Extra

FEATURES
Designed for umbilical drag system used for distribution of slurryand manure in agricultural fields.
Engineered with extreme tensile strength and abrasion properties.
High tenacity filament polyester yarn.

Design
Covered and lined with Thermoplastic Polyurethane (TPU).
Extrusion through the Weave Technology - ensuring ultimate adhesion between TPU and the weave.
Heavily reinforced weave ensuring required longitudinal Tensile strength and Burst pressure.

Advantages
Ultimate tensile strength and adhesion level polymer to weave.
Enhanced abrasion resistance.
High diameter and extension stability.
Low kink radius.
High puncture resistance.
Temperature range -50ºC to +75ºC (pure water) (-58 ºF to +167 ºF).
Standard lengths depending on diameter.
Excellent UV and weathering resistance.

Inner diameter: 5", 5-1/2", 6", 7", and 8".
Lengths: 660', 990', and 1,320'. Subject to availability

Heavy Duty Reinforced Suction Hose
Available in 4” / 6” / 8”
Also ask about our Blue Water and HG Tigerflex hoses for your injection tool bars.

150 PSI Rated
Available in 4” / 6”

Variety of sizes and ratings in stock:
Available in 4” / 6” / 8” / 10” / 12"

Kifco Water-Reels are the premier hard hose travelers in the irrigation industry. Water-Reels are used around the world for portable irrigation, dust suppression, leaching, & de-watering. Our engine drive units are ideal for redistributing wastewater with up to 3% solids.

Increase crop yields and irrigate hard to reach areas with a Kifco irrigation traveler. Water-Reels are an easy set-and-go system that can water acres in just a few unattended passes.

Cuff Farm Services carries a variety of sizes and options to fulfill all your irrigation needs.

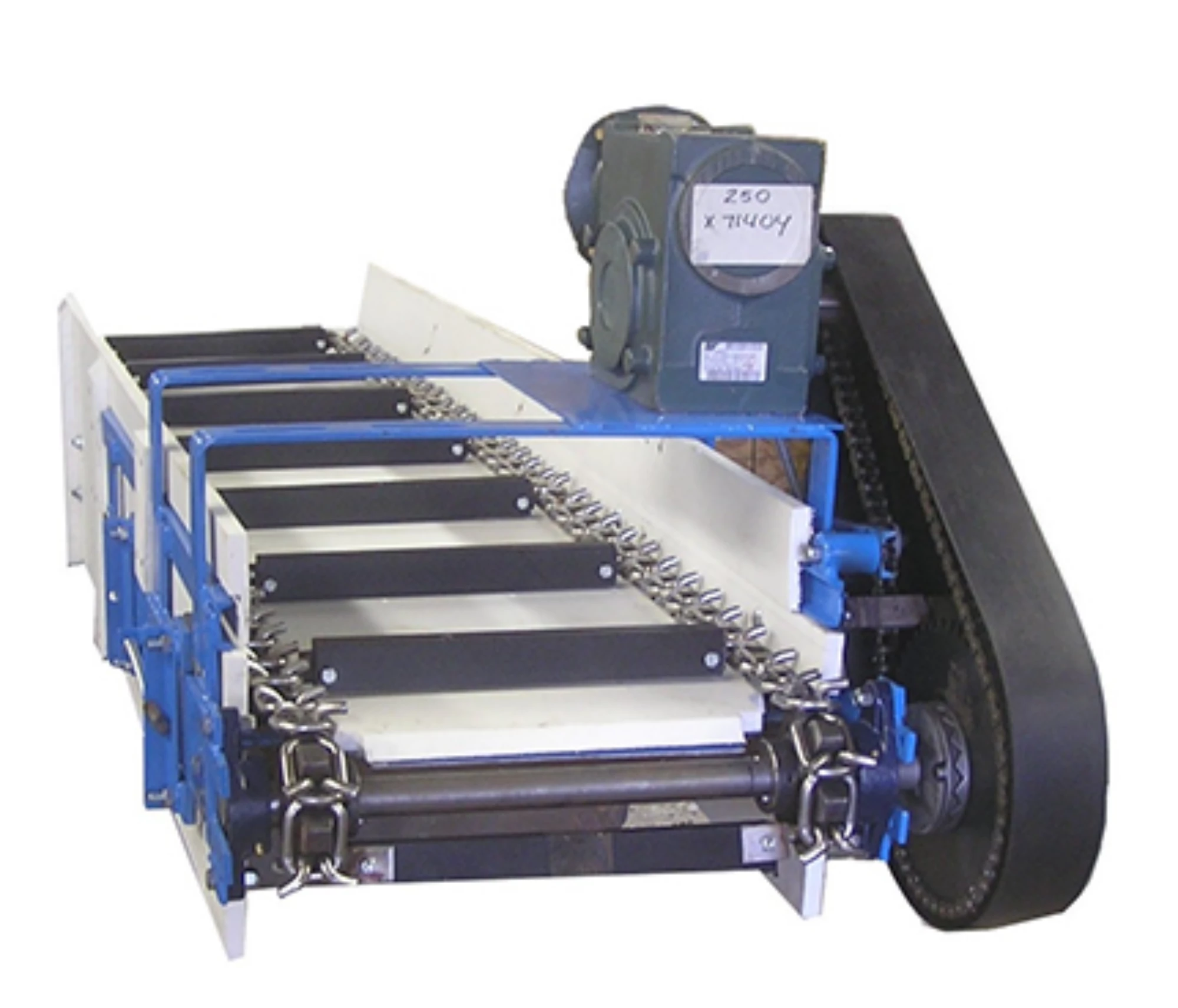

Poly Features:

• No Peeling or Fading
• No Rust
• No Decay
• Smooth, Quiet Operation
• Quality Components and Workmanship
• Drive units come mounted; Idler ends come installed

Dimensions:

• Overall Width 19 1/2″ or 25 1/2″
• Trough Width 18″ or 24″ or Trough Width 36″ for Maximum Capacity
• Bottom Delivery Height 9 1/4″
• Top Delivery Height 13 3/4″
• Poly Sides are 5/8″ Thick
• Poly Floor is 5/8″ Thick

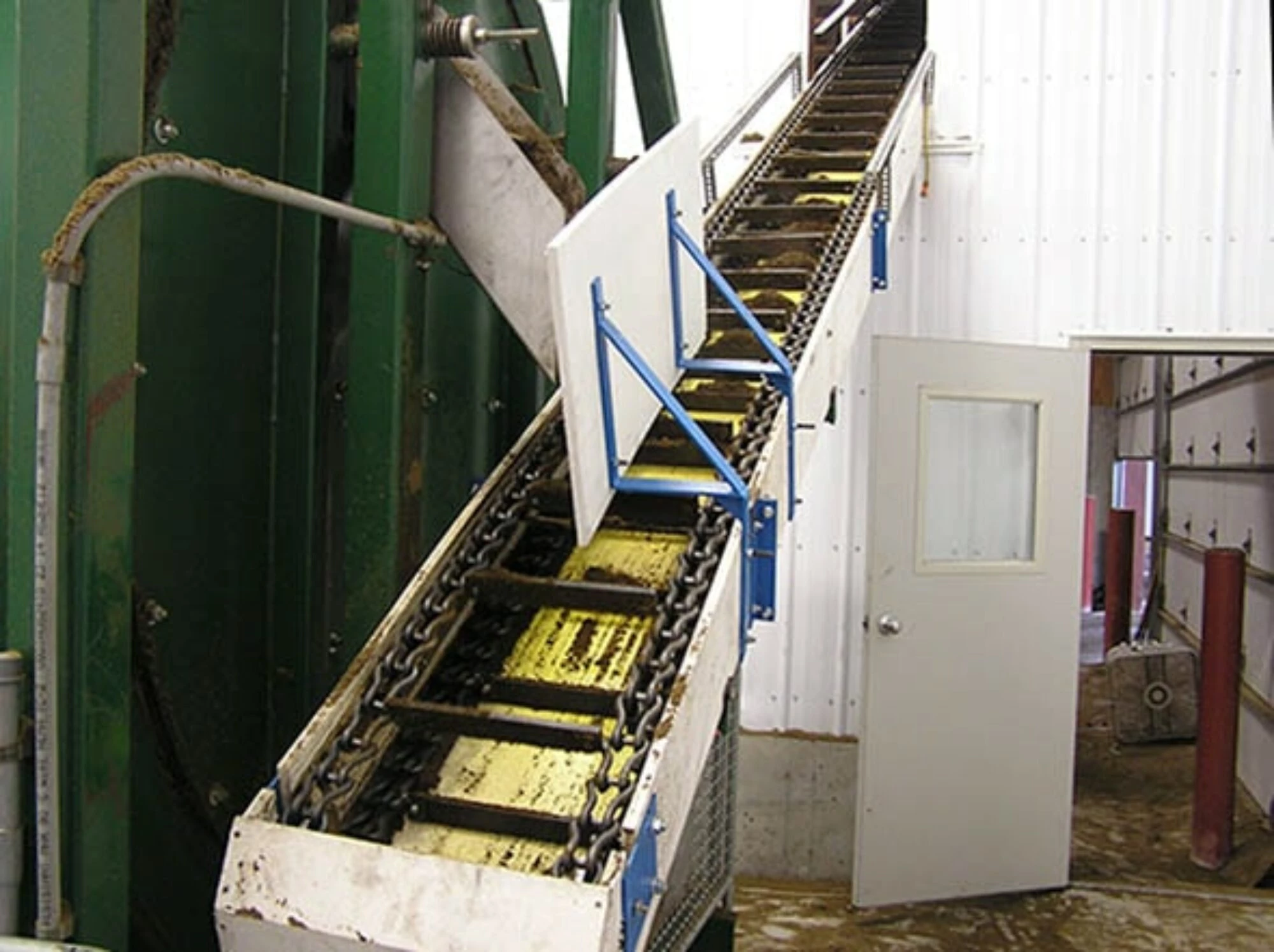

CFS provides new installations as well as upgraded chain options and the full line of replacement parts and chains for Kelly Conveyers.
